Floating Floor Mounts and Perimeter Strip
A concrete floor that floats on rubber mounts, separated from the structural slab and the walls around it, so noise and vibration from a mechanical plant room stay out of the rooms below and beside it.
The range
Mounts and perimeter strip
Both are available to buy online from Fixing Smith, our group company’s store.

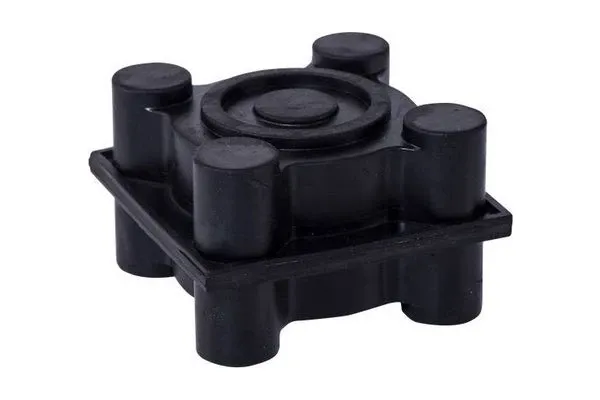

AFR-RFloating Floor Rubber Mount
Carries the floating slab on four raised corner columns, so it deflects evenly even under uneven loads.
AFR-RM: 135 kg, 6 mm · AFR-RL: 325 kg, 10 mm · 70 Shore A as standard
Buy on Fixing Smith

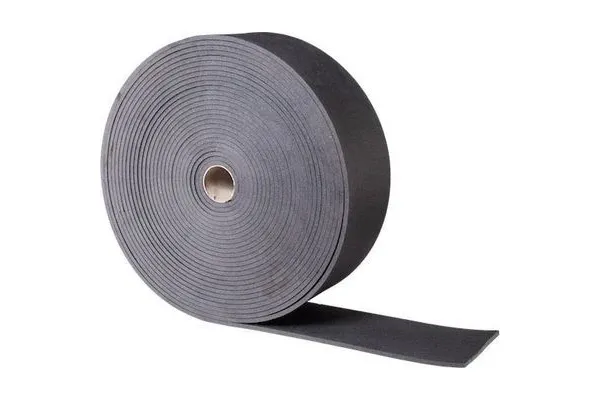

AFR-PSPerimeter Strip
Keeps the floating slab off walls and columns along its full height, so sound cannot bypass the mounts.
Closed-cell cross-linked copolymer · 10 mm thick · 200 mm high · sold by the metre
Buy on Fixing Smith
Datasheets, installation guides and certificates Downloads
The system
How a floating floor is built
- Structural slab

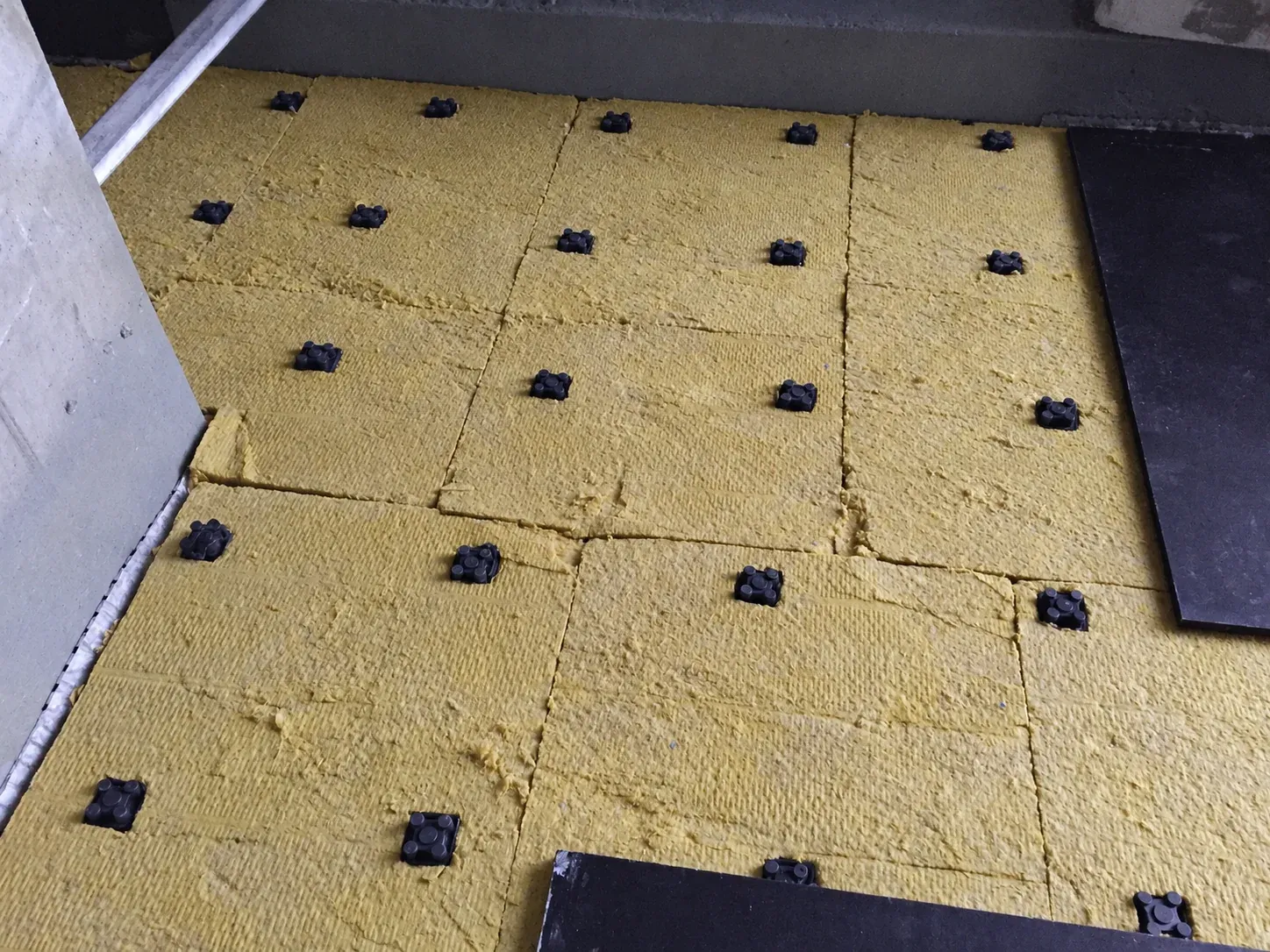

- AFR-R mountsSet out on a grid; spacing from the floor load.
- Mineral wool between the mountsOptional, at the installer’s or designer’s choice.
- Plywood deck on the mounts
- Separating membrane between plywood and concreteStrongly recommended.
- Reinforced concrete floating slabTypically 100 mm.
- AFR-PS strip at every wall and columnFull height of the slab.
In practice, a floor built this way reaches a natural frequency of around 15 Hz.
